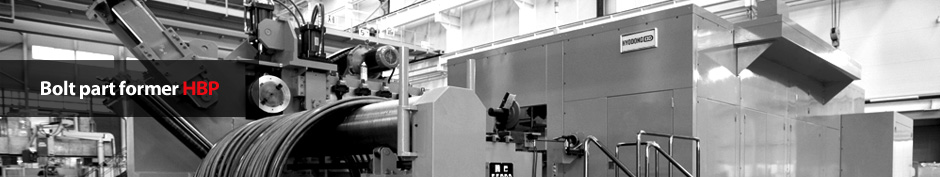

HBP 系列 长异型件成型机 Hyodong Bolt Parts Former
孝东生产五~八工位之长异型件成型机, 可按客户要求开发全新的型号。夹钳座采用铝合金夹钳方式，可组合直送, 翻转夹子及多功能夹钳机构使用，有利于生产异型零件。

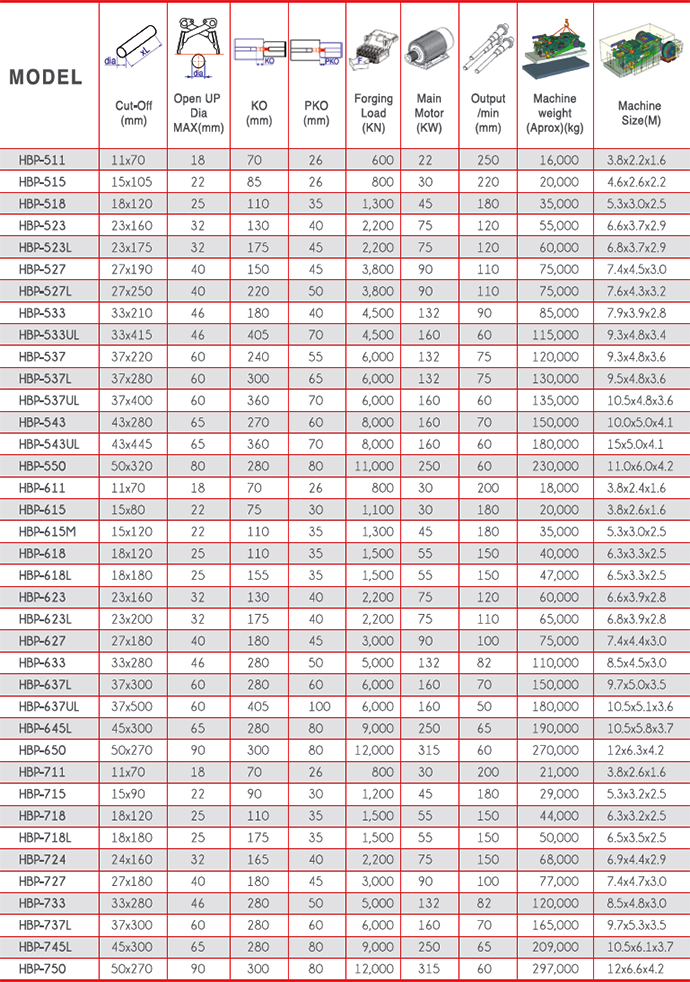

Station Max. Cut-off Dia x Length Max. KO mm Forging Lord kN Speed PPM
5 ~ 8 Ø 50 X 450 mm 480 mm 13,000 40 ~ 250


※ Specification subject to change without further notice.
