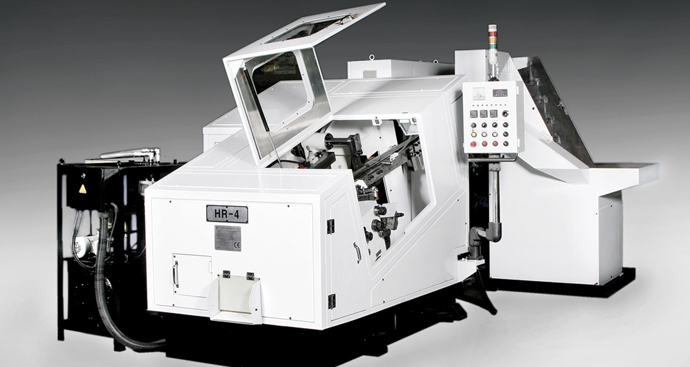

HR 系列 搓丝机 Hyodong Rolling Machine
孝东之搓丝机为韩国当地有300台以上销售业绩的高性能滑动式搓丝机。方便操作及设定产品且搓丝精度可靠, 大大提升生产效率。

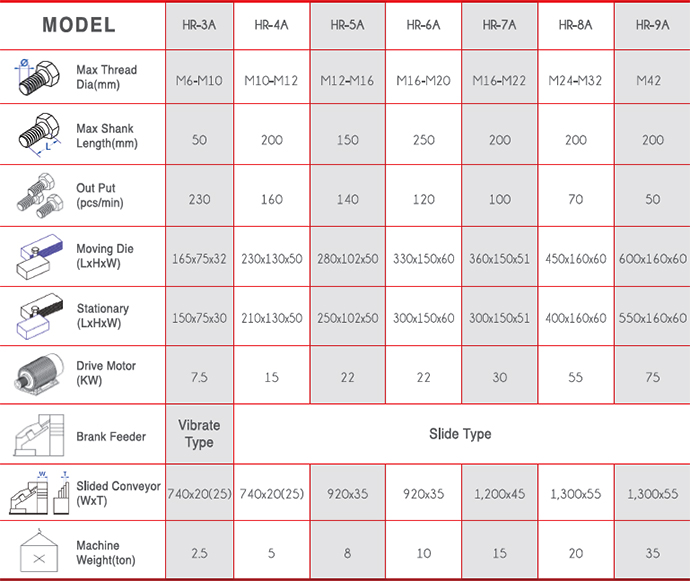

Thread Dia mm Shank Length mm Max Thread Length mm Rolling Load kN Speed PPM
M6 ~ M42 50 ~ 360 30 ~ 200 50 ~ 420 50 ~ 250


※ Specification subject to change without further notice.
