We are possible to manufacture from 5-station to 8-station.
As according to customer’s demand, it is possible to develop diverse types of Former Machine.
Especially our transfer is cassette type that is optimized to put out forming because of combining open, turn, universal chuck and etc.

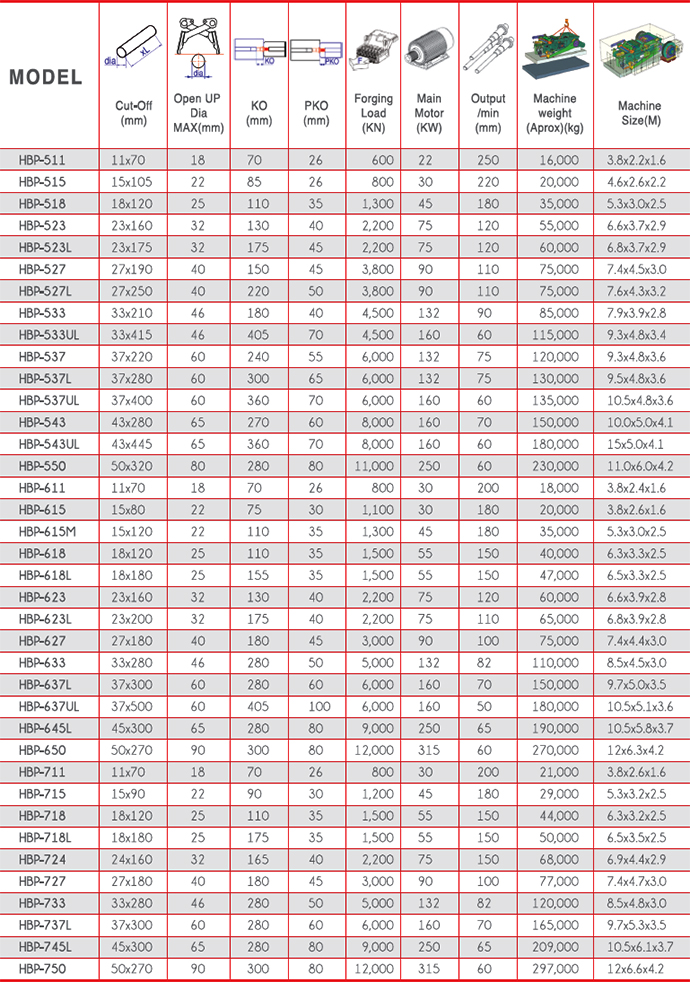

Station
Max. Cut-off Dia x Length
Max. KO mm
Forging Lord kN
Speed PPM
5 ~ 8
Ø 50 X 450 mm
480 mm
13,000
40 ~ 250
※ Specification subject to change without further notice.
