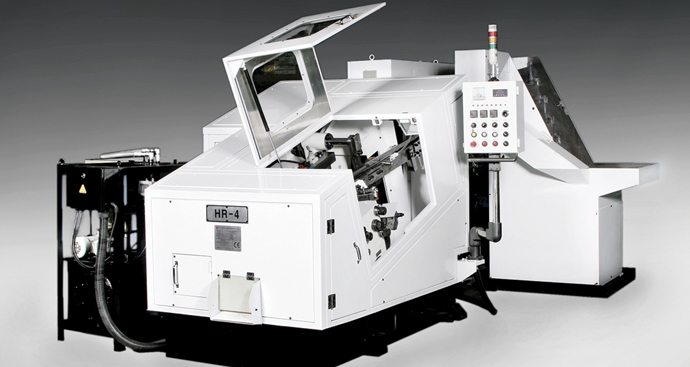

As high technical slide type of machine, Hyodong Rolling Machine has the results that were sold than 300 units. Easy adjusting & high precision makes to boost production

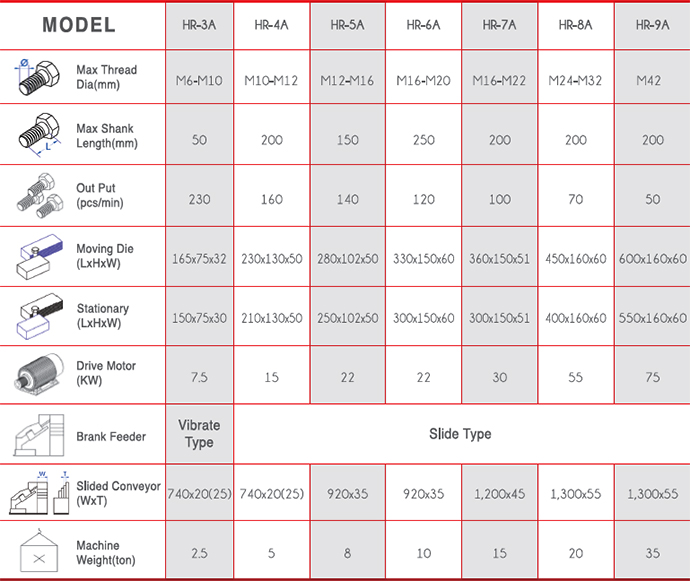

Thread Dia mm
Shank Length mm
Max Thread Length mm
Rolling Load kN
Speed PPM
M6 ~ M42
50 ~ 360
30 ~ 200
50 ~ 420
50 ~ 250
※ Specification subject to change without further notice.
