HW Series Hyodong Warm Former

Warm former can be manufactured from 5 to 8 stations, and various types of models can be developed according to customer needs.

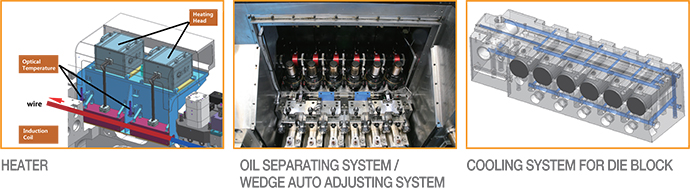

In the case of warm formers, it is produced by heating the material between 200~850℃. So it has superior formability compared to cold formers.
Therefore, it is able to produce titanium, magnesium, inconel, aluminum alloy etc. materials.

Station	Max. Cut-off Dia x Length	Heating Temperature	Forging Load kN	Speed PPM
6	ø33 x 270	200 ~ 850℃	500	80

MODEL	Cut-off (mm)	Open UP Dia MAX(mm)	KO (mm)	PKO (mm)	Forging Load (KN)	Main Motor (KW)	Output/min	Machine weight (Aprox)(kg)	Machine Size(M)
HWBP-615	15X50	22	50	30	1,100	30	150	35,000	5.0x3.0x2.5
HWBP-623	23X180	32	155	50	2,200	75	120	60,000	3.9x6.8x2.8
HWBP-627	27x180	40	180	52	3,500	90	100	80,000	7.4x4.4x3
HWBP-633	33X270	46	260	62	5,000	132	80	110,000	8.5x4.5x3.0

※ Specification subject to change without further notice.
